Shipborne Wireless Mesh Ad Hoc Network System

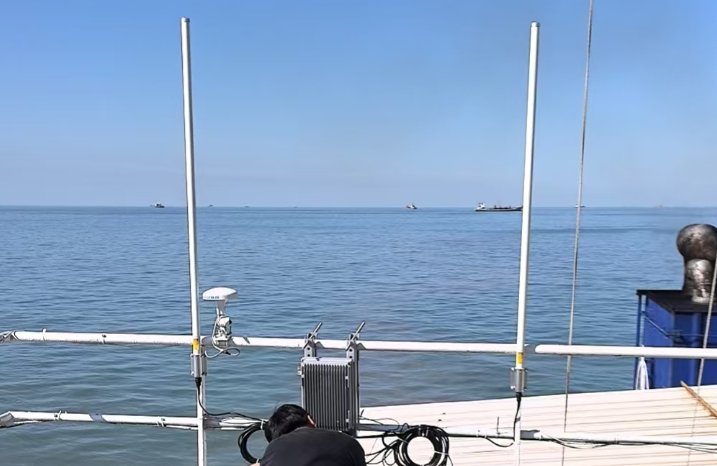

Step 1: Deploy the transmitting terminal radio on the shoreside and connect it to the Internet (network speed: 100Mb)

Shoreside Transmitting Terminals*2

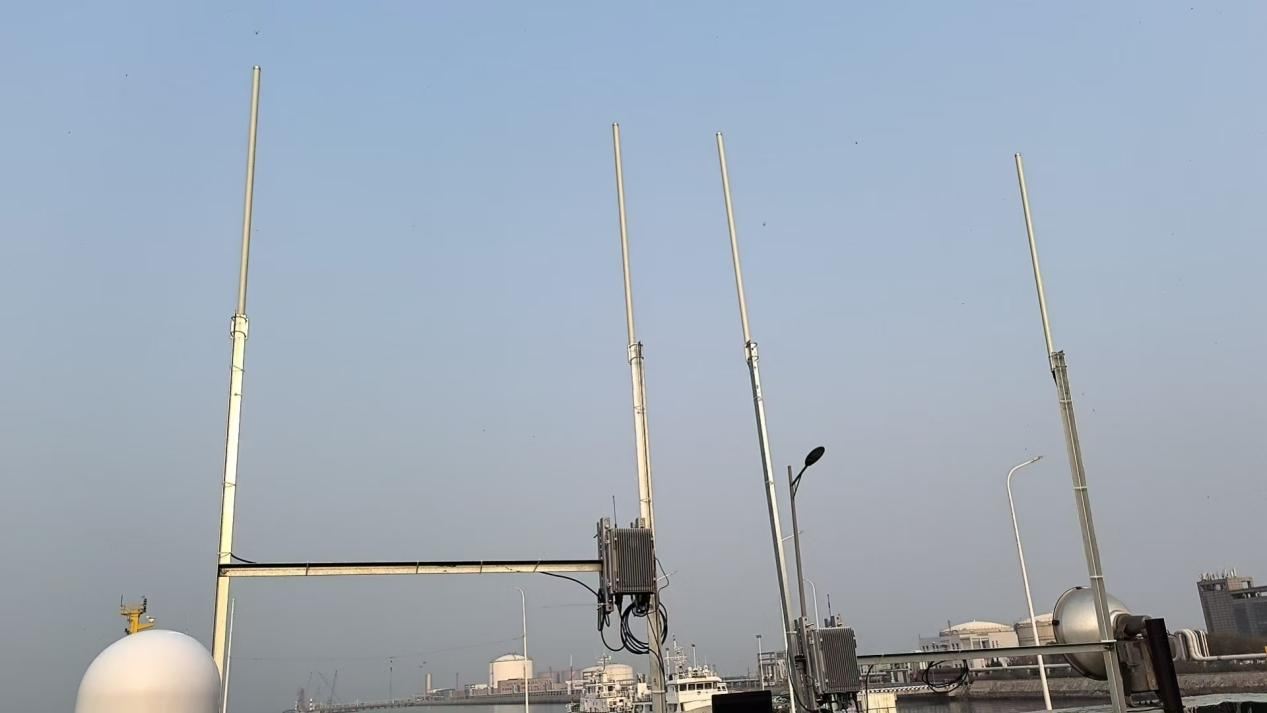

Step 2: Install receiving and transmitting terminals in a high place onboard. The equipment can receive RF from the shore end and convert them into Internet signals for network access and business aboard.

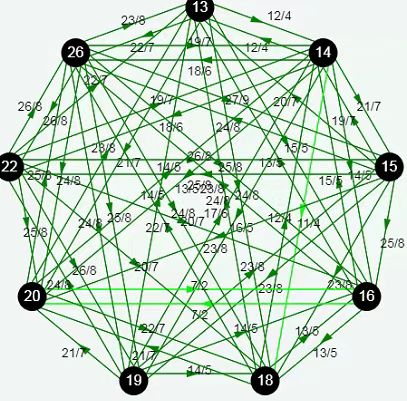

Step 3: After the test results show that the network speed for a single ship can reach 100Mb and above, the Ad Hoc Network structure can be constructed.
