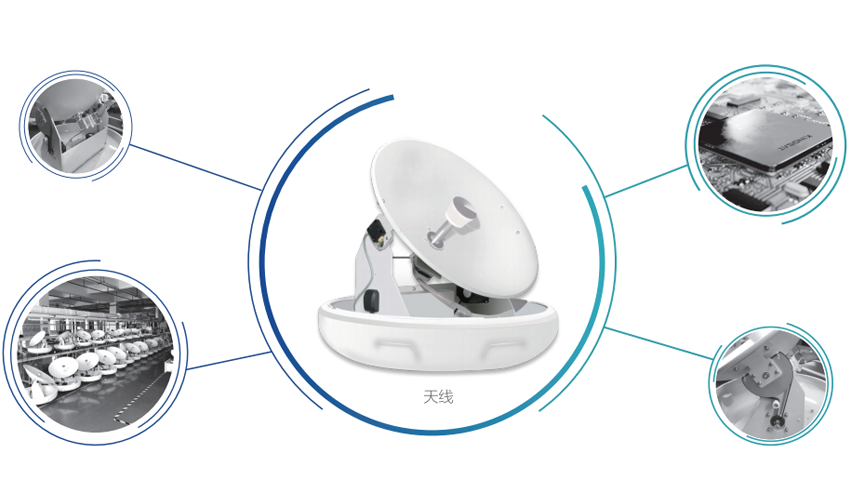

Shipborne Satellite Television Antenna：
Excellent Signal Tracking Performance against Wind and Wave The antenna adopts the original and more advanced wind-resistant and wave-resistant algorithms, state-of-the-art mechanical design, and a high-sensitivity gyroscope, ensuring the antenna can still receive signals from satellites continuously and non-stop under severe environmental conditions. | Built-in Global Satellite Database There is a database of the latest global satellites built in the ACU. It is easy to switch to different satellites and expand the database manually. |
Excellent Signal Reception The antenna adopts self-developed and self-designed RF modules, such as LNB and Tuner, ensuring the best reception performance. | Two-axis Stabilization and Automatic Polarized Tracking The two-axis stabilized base with an automatic polarized tracking system is designed to guarantee optimal performance. |
Fast Satellite Searching and Positioning The antenna is compatible with BeiDou and GPS modules, which ensures that the system automatically updates data of precise location, and realizes accurate positioning and fast satellite locking. | Easy Installation and Elaborate Design The antenna is easy and convenient to install with a beautiful wind-resistant and wave-resistant radome, saving effort and time. |
Parameters：
Antenna Model | TV33 | TV45 | TV60 | TV75 |
Reflector Diameter | 33cm | 47cm | 60cm | 75cm |
Size | 41cm*42cm | 54cm*56.5cm | 73cm*76cm | 82cm*86cm |
Weight | 5kg | 12kg | 20kg | 32kg |
Operating Frequency | KU Band（10.7GHz～12.75GHz） | |||
Polarization Type | Linear Polarization or Circular Polarization | |||
Azimuth Range | 690° | |||
Elevation Range | 0°-90° | |||
Applicable Minimum Electric Field Strength | 50dBW | 48dBW | 46dBW/47dBW | 44dBW |
Ship’s Motion | Roll±25° Pitch±15° Yaw±8° @ within 6s | |||
Tracking Rate | >90°/s | |||
Operating Temperature | -30℃~70℃ | |||
Relative Humidity | 0~95% | |||
Antenna Base Stabilization | Two-axis stabilization, three-axis tracking | |||
