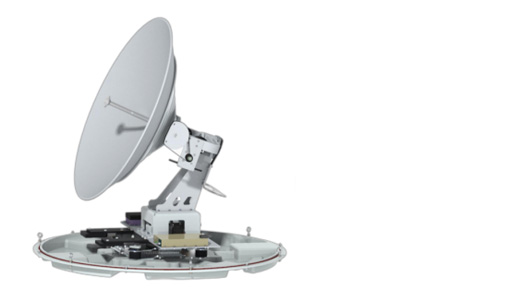

F-V100
Excellent Control Performance The initial search time for the satellite is short, and the antenna can lock onto the satellite within 120 seconds after being turned on. After the antenna receives the order, it immediately adjusts its Elevation and Azimuth and then switches quickly between target satellites by the shortest path. | High Satellite Tracking Accuracy The antenna uses an advanced conical scanning algorithm, enabling it to lock onto the satellite direction firmly and keep the accuracy within the range of ±0.2°. |
Stable and Secure Power Control Panel To better face a harsh and changeable power environment, the antenna is equipped with an independently developed power control panel, ensuring a reasonable range of the power supply (from 17V to 34V) and normal operation of all equipment. | Three-axis Stabilization The antenna adopts a three-axis stabilized structure with a built-in high-precision inclination sensor, a magneto-resistive sensor, a gyro sensor, and a GPS antenna, which allow real-time monitoring of external angle change. |
Accurate Digital Satellite Search By demodulating the satellite carrier wave and obtaining the C/N value of the signal, the antenna can accurately identify the target satellite at one time, and there is no need to initially lock a carrier wave and then check with the Modem to determine whether it is the target satellite. | Easy Installation and Elaborate Design The antenna is easy and convenient to install with a beautiful wind-resistant and wave-resistant radome, saving effort and time. |
设备参数：
Antenna Model | F-V100 |
Reflector Diameter | 105cm |
Stabilization | Three-axis( polarized) |
Size (D*H) | 138.5cm*135cm |
Weight | 120kg |
TX Frequency Range | 13.75GHz～14.5GHz |
TX Gain | 41.3dBi @14.25GHz |
RX Frequency Range | 10.7GHz～12.75GHz |
RX Gain | 39.8dBi @11.75GHz |
Polarization Type | Linear |
Polarization Isolation | >30dB |
Azimuth Range | 360°Unlimited |
Elevation Range | -10°～110° |
Cross-level Range | ±30° |
Tracking Method | Carrier Wave Tracking |
Tracking Accuracy | RMS 0.2° |
Initial Search Time for a Satellite | <90s |
BUC | 6W,8W,16W,40W |
Operating Temperature | -25℃～55℃ |
Operating Voltage | 85V～264V AC |
Modem Protocol | OpenAMIP Protocol |
Waterproof Level | IP56 |
Vibration Damping Design | Supportive |
Application Area: Global Use
|

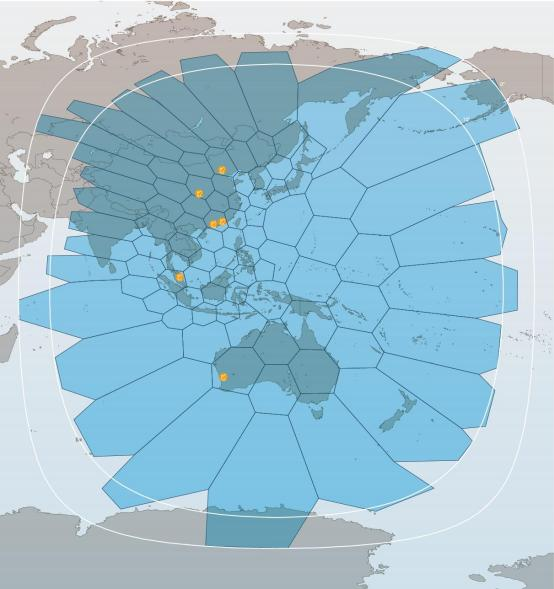

APSTAR-6D Footprint |
|
Global Footprint |
